Etude DA-1716
24 Bit/96kHz DAC KIT

Only RM550.00 per Kit

AudiofileReview

The Etude 24 bit/96kHz DAC Kit is a technically advance DAC Kit.The DAC section comprise a pre-mounted SMD Crystal CS8414 as the 96kHz digital audio receiver, a pre -mounted SMD Burr-Brown PCM 1716
24-bit/ 96kHz sampling CMOS Delta-Sigma stereo audio DAC chip and a Texas Instruments NE5532AP dual low-noise operational amplifier.
  • The Kit includes the following parts:
  • PCB mounted Coaxial digital input socket - 1 pc
  • RCA output socket - 1 pc.
  • 2SC1815 Transistor - 1 pc.
  • All capacitors & resistors for the DAC section
  • Power Transformers - 2 pcs.
  • *Burr-Brown OPA2604AP dual low-noise operational amplifier. - 1 pc.
An optional Optical input socket is also available.
The Power Supply section uses Linear Technology
regualtors;one LT1033CT negative adjustable regulator
for the 5V regulationand two LT1085CT positive
adjustable regualtors, one for 5V and the other for
12V regulation. Include all PCB mounted Capacitors,
Resistors, Diodes & Trimmers.











Components & Parts:

The DAC kit uses good Audio grade components & Parts,
such as Philips and Rubycon low ESR electrolytic
capacitors, Philips metallized film capacitors for both the
DAC and Power Supply sections.
The 3 resistors use in the power supply
section are 1% 25 ppm metal film.
The Diode are GW RL202,
Trimmers are TOSOS from Japan.
Also included with this kit is an extra piece of
*Burr-Brown Opamp for the builder to experiment with,
as different opamp have different sound characterstic.

Have fun!

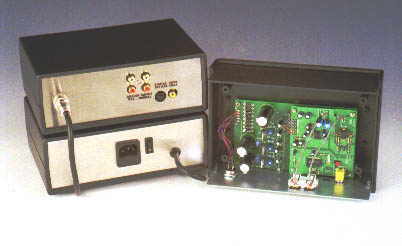

Complete build-up with optional mirror stainless steel front panel.
RM965.00

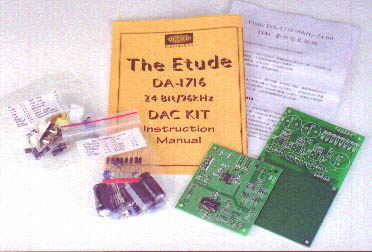

The Basic Kit - PCB, components & manual.

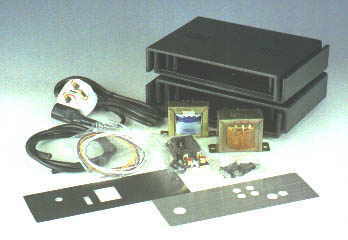

The complete accessories :
- Laser cut Stainless Steel Panels
- 2 plastic boxes
- 2 transformers
- Power cables
- Hook-up wires
- IEC socket w fuse holder
- Fixtures (screws, nuts,washers...)
The Full Kit - Basic Kit + Complete Accessories

RM750.00
